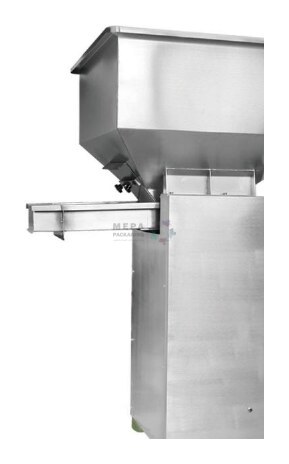

A feeder buffers product between the elevator and the weigher and releases it at a steady rate, which is what keeps a multihead weigher accurate.
The retractable version pulls back clear of the machine below it, so the changeover and cleaning access stay easy.
- Independent vibrating feeder with silo
- Retractable feeder for easy access
- Silo volumes of 150 and 200 litres
- SUS304 body on a powder-coated carbon steel frame
- Exit height adjustable to the machine below
| Max capacity | 8 m³/h (vibrating) / 4 m³/h (retractable) |
|---|
| Silo volume | 150 / 200 L on the vibrating feeder |
|---|
| Pan length | 826 mm (vibrating) / 267 mm (retractable) |
|---|
| Exit height | 530 / 550 mm or to requirement |
|---|
| Body material | SUS304; carbon steel frame with powder coating |
|---|
| Power supply | Single phase 220 V, 50/60 Hz, 0.75 – 1.5 kW |
|---|
