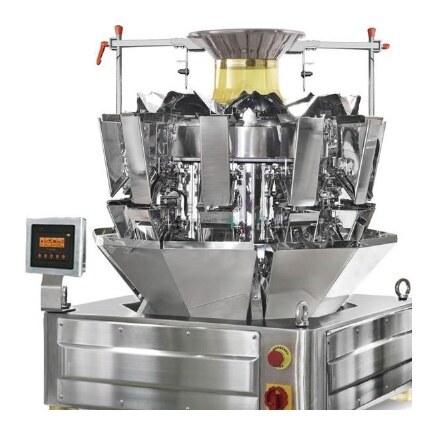

A multihead weigher makes up each target weight from the best combination of its hoppers, so it hits the target far more closely than a single-dose filler and gives away much less product.
Configurations run from 10 to 24 heads, with waterproof, screw, belt, memory-hopper and fresh-food versions for sticky, fragile or wet products.
- 10, 12, 14, 16, 20 and 24-head versions
- Three-layer blending weighers for mixed products
- Hopper volumes from 0.3 to 16 litres
- Shatter-proof version for fragile products
- Belt and screw feeding for sticky and powdery products
- Fresh-food and fruit & vegetable versions
- 7" or 10" colour touch screen
| Heads | 10, 12, 14, 16, 20 and 24; three-layer blending versions available |
|---|
| Hopper volume | 0.3 – 16 L |
|---|
| Weighing range | 5 – 5,000 g depending on configuration |
|---|
| Accuracy | X(0.5) standard; ±0.01 g on high-accuracy versions |
|---|
| Max speed | 70 bpm standard; up to 120 bpm on high-speed versions |
|---|
| Control | MCU or PLC, 7" or 10" colour touch screen |
|---|
| Power supply | AC 220 V / 110 V ±10%, 50/60 Hz, 1.5 – 3 kW |
|---|
Typical products: pistachios, candies, coffee and cacao beans, tablets, hardware, plastic pellets, frozen and fresh food, fruit and vegetables.
