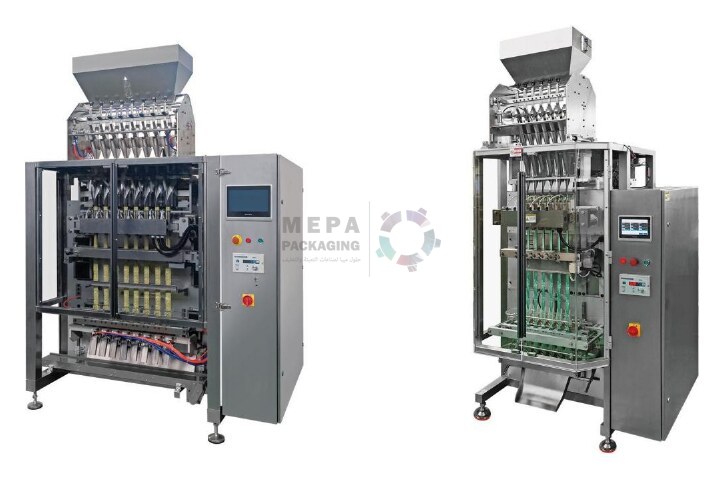

Multi-lane machines make the same sachet in four to twelve parallel streams, which is how a small single-serve pack reaches an economic output.
Three-side seal, back seal and four-side seal formats are available, with easy-tear and point-break options.
- 4, 6, 8, 10 and 12-lane versions
- Three-side seal, back seal and four-side seal
- Powders, granules and liquids
- Easy-tear, point-break and V-type cuts
- Multi-row printing, slitting and bag making in one pass
- Fault alarm and safety detection on the touch screen
| Lanes | 4, 6, 8, 10 and 12 |
|---|
| Bag width | 30 – 60 mm (three-side seal); 16 – 65 mm (back seal) |
|---|
| Bag length | 20 – 60 mm or 90 – 180 mm |
|---|
| Filling capacity | 2 – 30 g (±2 – 7%) |
|---|
| Speed | 40 – 70 bags per lane per minute |
|---|
| Packing film width | 400 / 600 / 800 mm |
|---|
| Air pressure | 0.5 – 0.7 MPa |
|---|
| Power supply | Single phase 220 V, 50/60 Hz, 3.0 – 15.0 kW |
|---|
Typical products: milk and coffee powder, protein and flour, desiccant, tea, matcha, tablets, sauces, vinegar, oral and pharmaceutical liquids.
