A metal detector is the last thing between a broken screen or a piece of wire and your customer, and it is usually the cheapest recall insurance on the line.

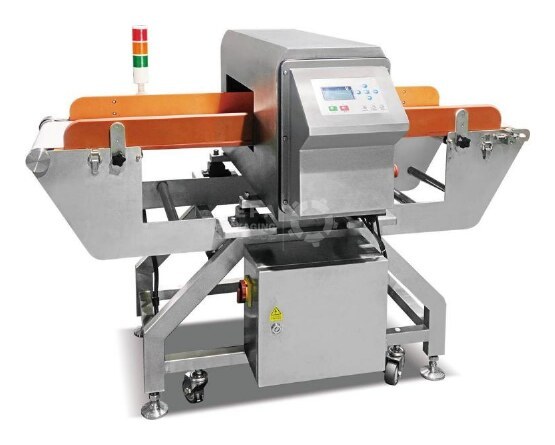

Conveying detectors sit in the pack flow; free-fall detectors sit in the chute above the weigher, where bulk product is still loose.
- Conveying and free-fall versions
- Product widths up to 1,000 mm
- Free-fall tubes of 75, 100 and 150 mm
- Flash and sound alarm with automatic rejection
- Pneumatic pusher or sliding reject
- 7" colour touch screen
- 304 stainless steel frame
| Detected product width | <300, <400, <500 and <1,000 mm |
|---|
| Detected product height | <100 – 250 mm |
|---|
| Sensitivity (conveying) | Fe Ø0.8 – 1.5 mm; SUS304 Ø2.0 – 2.5 mm |
|---|
| Sensitivity (free-fall) | Fe from 0.5 mm; SUS from 1.0 mm, by tube size |
|---|
| Free-fall capacity | 3 / 5 / 10 tonnes per hour |
|---|
| Rejection | Flash alarm, pneumatic pusher or sliding, automatic shutdown |
|---|
| Frame material | Stainless steel 304 |
|---|
| Power supply | AC 220 V, 50 Hz; air 0.5 MPa on the free-fall version |
|---|
Typical products: aquatic products, meat and poultry, pickles, pasta, dried fruit, vegetables, industrial chemicals, pharmaceuticals, cosmetics and toys.
