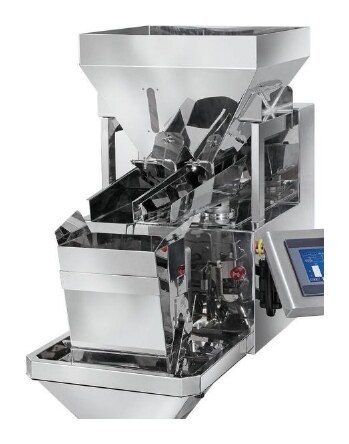

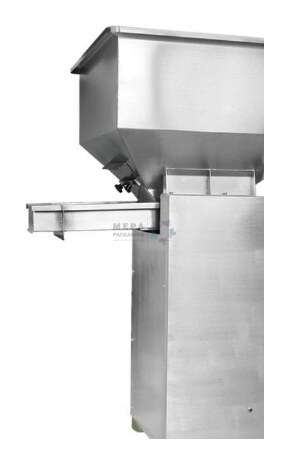

Linear weighers are the simpler, lower-cost answer where speed matters less than reliability: a vibrating pan feeds one or more weigh hoppers until the target is reached.
An anti-sticky version with a scraper handles viscous and irregular products such as fresh meat and pickles, which would bridge in a standard hopper.
- Single, double, four and eight-head versions
- Hopper volumes from 0.5 to 50 litres
- Anti-sticky version with scraper
- High-accuracy two-tier version
- Servo-controlled version for large doses
- Versions for fruit and vegetables
| Configurations | Single, double, 4-head and 8-head |
|---|
| Hopper volume | 0.5 – 50 L |
|---|
| Weighing range | 50 – 5,000 g depending on configuration |
|---|
| Accuracy | X(0.5) standard; X(1) on the anti-sticky version |
|---|
| Max speed | 10 – 30 bpm depending on configuration |
|---|
| Control | MCU or PLC, 7" or 10" colour touch screen |
|---|
| Power supply | AC 220 V ±10%, 50/60 Hz, from 0.6 kW |
|---|
Typical products: sugar, rice, salt, seeds, milk powder, coffee, seasoning powder — and fresh meat and pickles on the anti-sticky version.
