These machines fill by weight rather than by volume, so a change in temperature or density does not change what the customer receives.

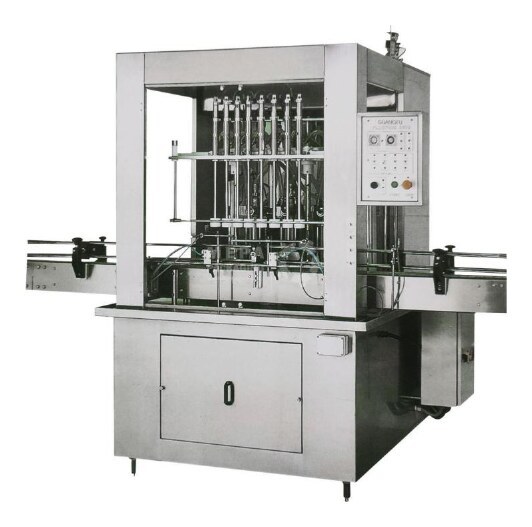

Linear machines suit lower outputs and frequent changeovers; rotary machines carry up to 32 heads for continuous production.
- Linear machines with 4 to 16 valves
- Rotary machines with 6 to 32 heads
- Weighing-type filling with anti-drip valves
- Thin and viscous liquids
- 304 or 316 stainless steel construction
- Single-head or simultaneous multi-head filling
| Production capacity | 600 – 12,000 bottles per hour |
|---|
| Filling capacity | 0.1 – 2.0 L (linear); 0.25 – 20 L (rotary) |
|---|
| Filling valves | 4 – 16 (linear); 6 – 32 (rotary) |
|---|
| Filling accuracy | ±0.5% to ±1% |
|---|
| Filling viscosity | 0.04 – 3 Pa·s |
|---|
| Product temperature | 10 – 75 °C |
|---|
| Frame material | 304 / 316 stainless steel |
|---|
| Power supply | 3-phase 380 V, 50 Hz, 1.5 – 15 kW |
|---|
Typical products: edible and lubricating oil, syrup, soy sauce, emulsions, shampoo and bath liquid, spirits, water, detergents and agrochemicals.
