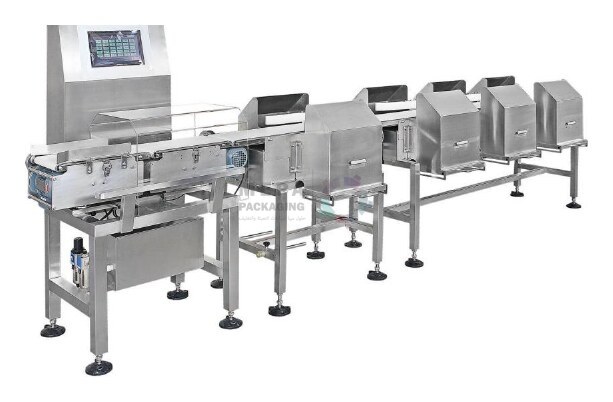

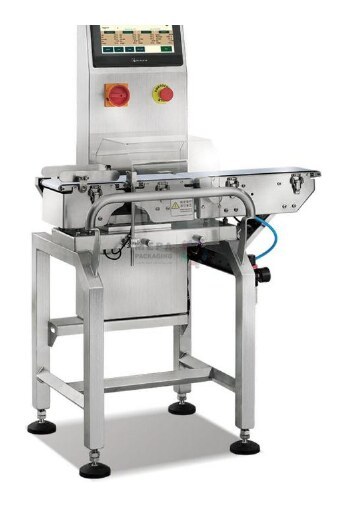

A checkweigher weighs every pack as it passes and rejects the ones outside tolerance, which is what turns a fill tolerance into a guarantee.
The same machine catches missing accessories and missing inserts, because those show up as an underweight pack.
- Models for small packs up to large cartons
- Mini and dual-channel high-precision versions
- Pusher, air-blow or swing-arm rejection
- 99 product presets
- 7" colour touch screen
- 304 stainless steel frame
| Weighing range | <200 g, <500 g and larger models up to 5 kg |
|---|
| Accuracy | ±0.02 – 0.07 g on the smallest model; ±0.05 – 0.1 g at <500 g |
|---|
| Min. scale value | 0.01 g |
|---|
| Max speed | Up to 180 packs per minute |
|---|
| Conveying speed | 20 – 100 m/min |
|---|
| Rejection | High-speed A/D sampling controller; pusher, air blow or swing arm |
|---|
| Frame material | 304 stainless steel |
|---|
| Working environment | 0 – 40 °C, humidity 30 – 95% |
|---|
| Air supply | 0.6 – 1 MPa, 8 mm interface |
|---|
Request a quote
