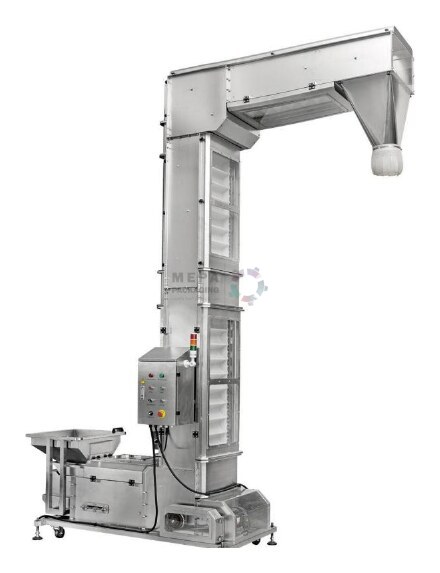

A bucket elevator lifts product from floor level to the infeed of a weigher or packer without breaking or degrading it, and buffers the flow while it does so.
Multi-export versions feed several machines from one elevator, which is how a weighing and packing line is usually laid out.
- Z-type, multi-export, spacer-ring and vertical versions
- Bucket volumes of 1.0, 1.8 and 4.0 litres
- Integrated or independent vibrating feeder
- Single, double or multiple discharge funnels
- Carbon steel or SUS304 construction
- Easy-clean tooth-shaped belts on the vertical elevator
| Conveying capacity | 2.5 / 4 / 8 m³/h |
|---|
| Bucket volume | 1.0 L / 1.8 L / 4.0 L |
|---|
| Feeder volume | 70 / 100 / 150 / 200 L |
|---|
| Body material | Carbon steel or SUS304 |
|---|
| Belt material (vertical elevator) | PVC or PE, sidewall 50 mm, skirt 75 mm |
|---|
| Conveying speed (vertical elevator) | 0 – 20 m/min |
|---|
| Power supply | Single or 3-phase 220/380 V, 50/60 Hz, 0.4 – 2.2 kW |
|---|
